Details
- Advanced BMS with current limiting factor
- CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
- Excellent high temperature performance
- High Cycle Life and Service Life
- 1C High Performance Lithium Battery
- High Energy Density and Conversion Efficiency
- Complete with integrated Battery Management System
- Compartible with most inverters and chargers
- Low self-discharge
- Easy wall mount or shelf rack installation
- Heavy duty side handles for easy handling and mounting to the wall
- Built in protection for over-charge, over-discharge & over-temperature
Specifications

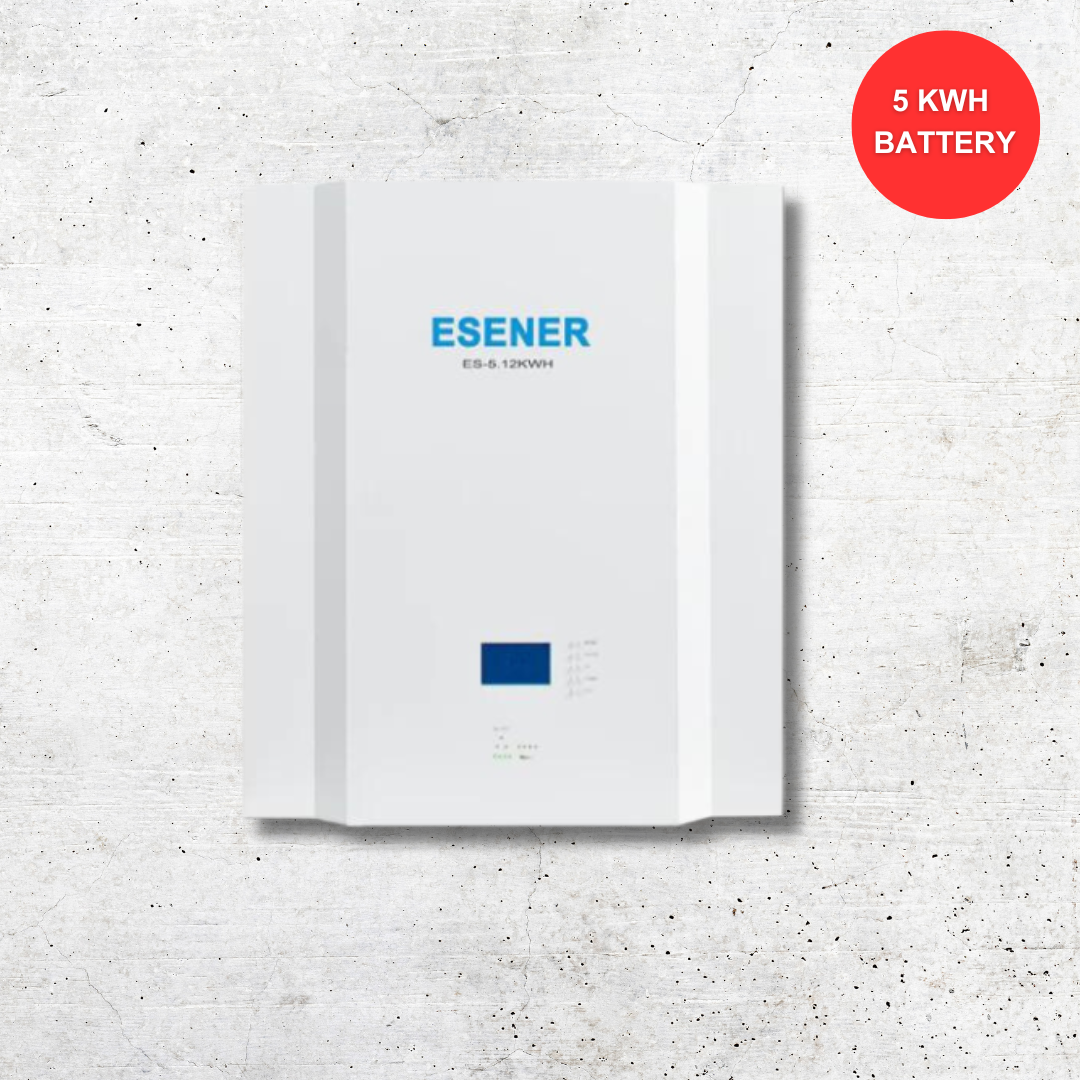

- Model: ES-5.12KWH
- Rated Capacity (5HR): 110Ah
- Voltage: 51.2V
- Discharge Cutoff Voltage: 40.0V
- Equalised Charge Voltage: 58.4V
- Maximum Continuous Charging Current: 100A
- Maximum Continuous Discharging Current: 100A
- Rating: 1.0C
- Weight: Approx. 46kg
- Display: LCD
- Parallel: Parallel connection up to 15 packs with full communications
- Dimensions (WxDxH): 505mm x 162mm x 543mm
- Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
- Cells:New Li-Ion Prismatic Cells
- Design Life: -/+ 15 Years
- Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
- Certification: CE, UN38.3, IEC, MSDS
- Outer Package Material: White bake lacquer steel case
- Operating Temperature: Charging: 0 to 50°C, Discharging: -10 to 50°C, Storage: -10 to 50°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
