5kw Growtech Inverter
Home Inverters 5kw Growtech Inverter

5kw Growtech Inverter

R7999,00

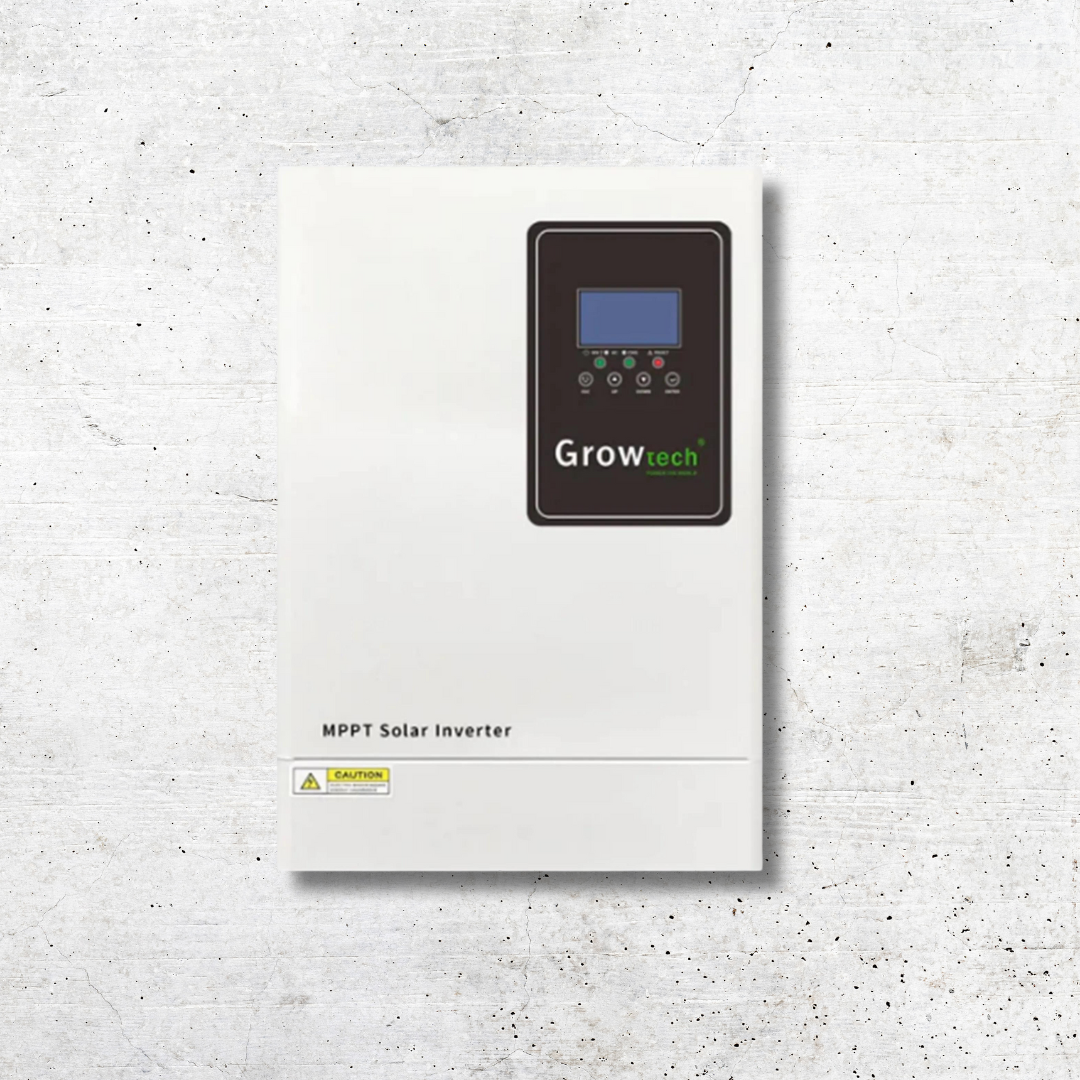

Growtech 5.5KVA 48VDC MPPT Solar Inverter – The latest Growtech 5.5KVA 48VDC 127A Pure Sine Wave Inverter is designed to provide a reliable backup power for medium to large household as well a business office environment installations. Equipped with a MPPT Solar Charge Controller to maximize and regulate DC power from the solar array for charging the battery bank. The Pure Sine Wave 5500w rated output enables easy start-ups for motor-type loads such as refrigerators, as well as electronic loads like TVs. Computers. power tool and battery chargers.

Category:

Specification

  • Growtech 5500VA 48VDC Pure Sine Wave Solar Inverter
  • Product Type Single Phase Non Parallel Inverter System
  • Output Power factor 1.0
  • DC Input 48VDC 127A
  • DC Output 54VDC
  • AC Input Voltage 220-230VAC 40A
  • AC Output Power 5.5KVA /5000W
  • Surge Power Voltage 11000VA
  • Maximum Input Current 60A
  • Maximum Charge Current (PV+AC) 100A
  • Nominal Operating Frequency:50/60HZ 23.9A
  • Battery Voltage: 48VDC
  • Battery Floating Voltage 54VDC
  • Battery Overcharge Protection 63VDC
  • Charging Method CC /CV
  • Maximum Peak Efficiency Battery to Inverter 93%
  • Maximum Peak Efficiency Solar PV to Inverter 97%
  • Solar PV Charger Type MPPT
  • Maximum Solar PV Array Power 5500W
  • Maximum Solar PV Input Current 18A
  • Maximum Solar PV Charge Current 100A
  • Minimum Solar PV DC Voltage Range 120VDC-450VDC
  • Maximum Solar PV DC High Voltage 500VDC
  • Maximum 100A MPPT Solar Charge Controller
  • Communication Interface RS232
  • Dimensions DxWxH 438x295x105
  • Weight 9.0kg
