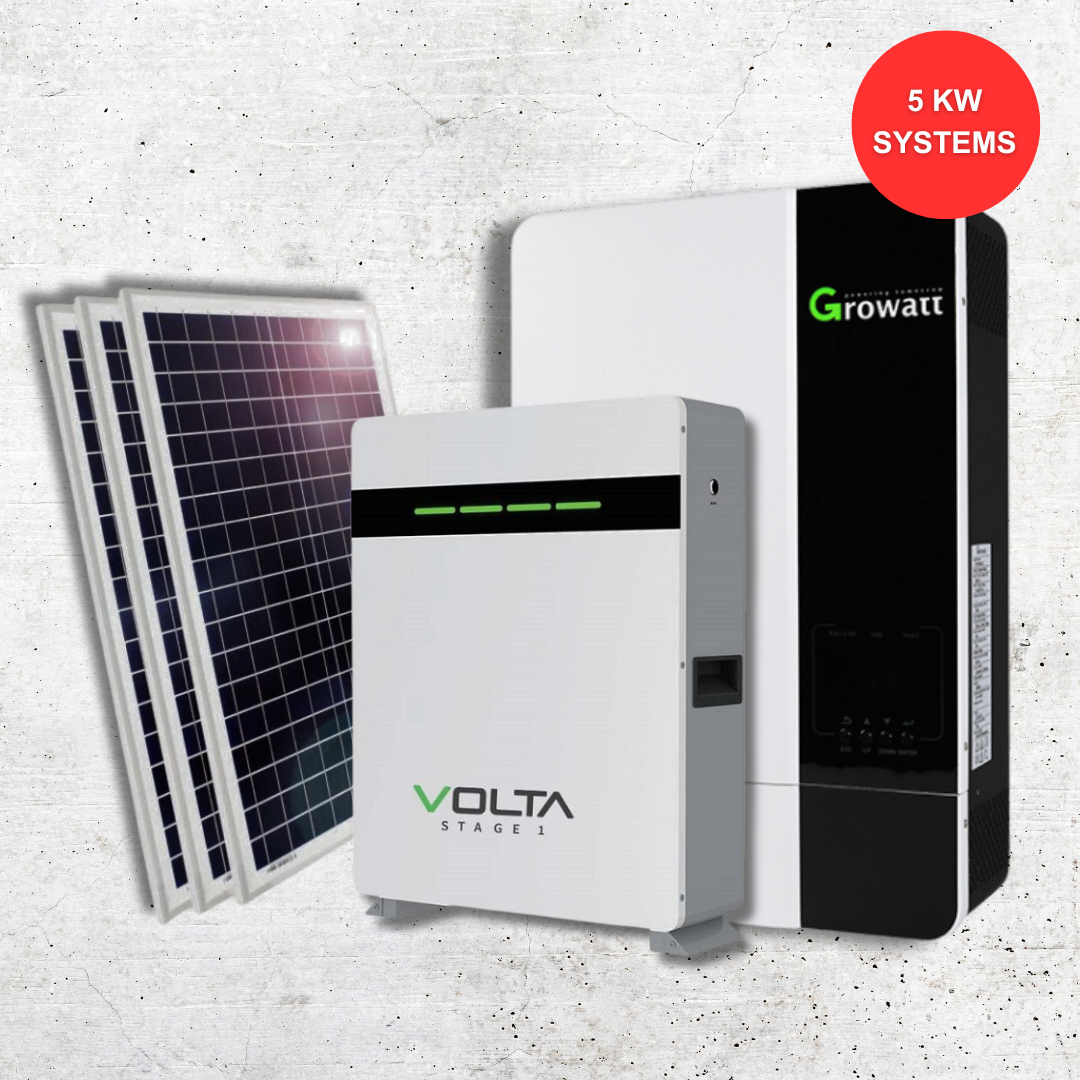

5kW Growatt Inverter:
The Growatt Solar Inverter 5kW 48V SPF5000 SPF5000 Solar inverter for backup and self-consumption applications. It has a high voltage PV Input for maximum efficiency and reduced installation cost.
- Integrated MPPT charge controller.
- Equalization charging function.
- Work with or without battery.
- Maximum PV input voltage up to 450VDC.
- Configurable grid or solar input priority.
- Optional WIF/GPRS remote monitoring
- Support parallel operation for capacity expansion up to 30kW.
- PV and grid power the load jointly if PV energy is unsufficient.
- Flexibly schedule the Inverter charging and discharging time
- Battery Voltage: 48VDC
- Parallel Capability: Yes, 6 units maximum
- Efficiency (Peak): 93%
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
- Protection Degree: IP20
- Net Weight: 12kgs
- Battery Type: Lithium/Lead Acid
- Surge Power: 10000VA
Solar Charger:
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
5.1kWh Volta Stage 1 Lithium Battery:
General Data
• Battery Type: Lithium-Iron
• Product Model: VOLTA STAGE 1
• Nominal Energy: 5.12kWH
• Nominal Voltage: 51.2VDC
• Nominal Capacity: 100AH
• Cell Type: LFP
• 1C/1C Continual Charge & Discharge
• Standard Charge Voltage: 56VDC
• Maximum Discharge Current: 100A
• Discharge Cut-Off Voltage: 44.8VDC
• Maximum Parallel Units: 8
• Design Life: 6000 Cycles @ 80% DOD @ 25°C
• Installation Type: Wall Mount & Floor Stand
Environment Limit
• Ingress Protection: IP20
• Charge Temperature Range: 0°C to +65°C
• Discharge Temperature Range: -20°C to +65°C
• Communication: RS485, RS232, CAN
• Safety Rating: MSDS / UN38.3
550w JA Mono Solar Panels:
More benefits of this module range
- Higher power output
- Less shading
- Lower resistive losses
- Lower LCOE
Technical Specifications
- Cell: Mono.
- Weight: 28.6kg±3%.
- Dimensions: 2261±×1134±×35mm±1mm
- Cable Cross Section Size: 4mm
- No. of Cells: 144 (6×24).
- Junction Box: IP68, 3 diodes.
- Connector: Genuine MC4-ECO2 QC 4.10-35/45
Electrical Parameters at STC
- Rated Maximum Power (Pmax) [W]: 550
- Open Circuit Voltage (Voc) [V]: 49.90
- Maximum Power Voltage (Vmp) [V]: 41.96
- Short Circuit Current (Isc) [A]: 14.00
- Maximum Power Current (Imp) [A]: 13.11
- Module Efficiency [%]: 21.3
- Power Tolerance: -0~+5W.
- STC: Irradiance 1000W/m2, cell temperature 25°C, AM 1.5G.
