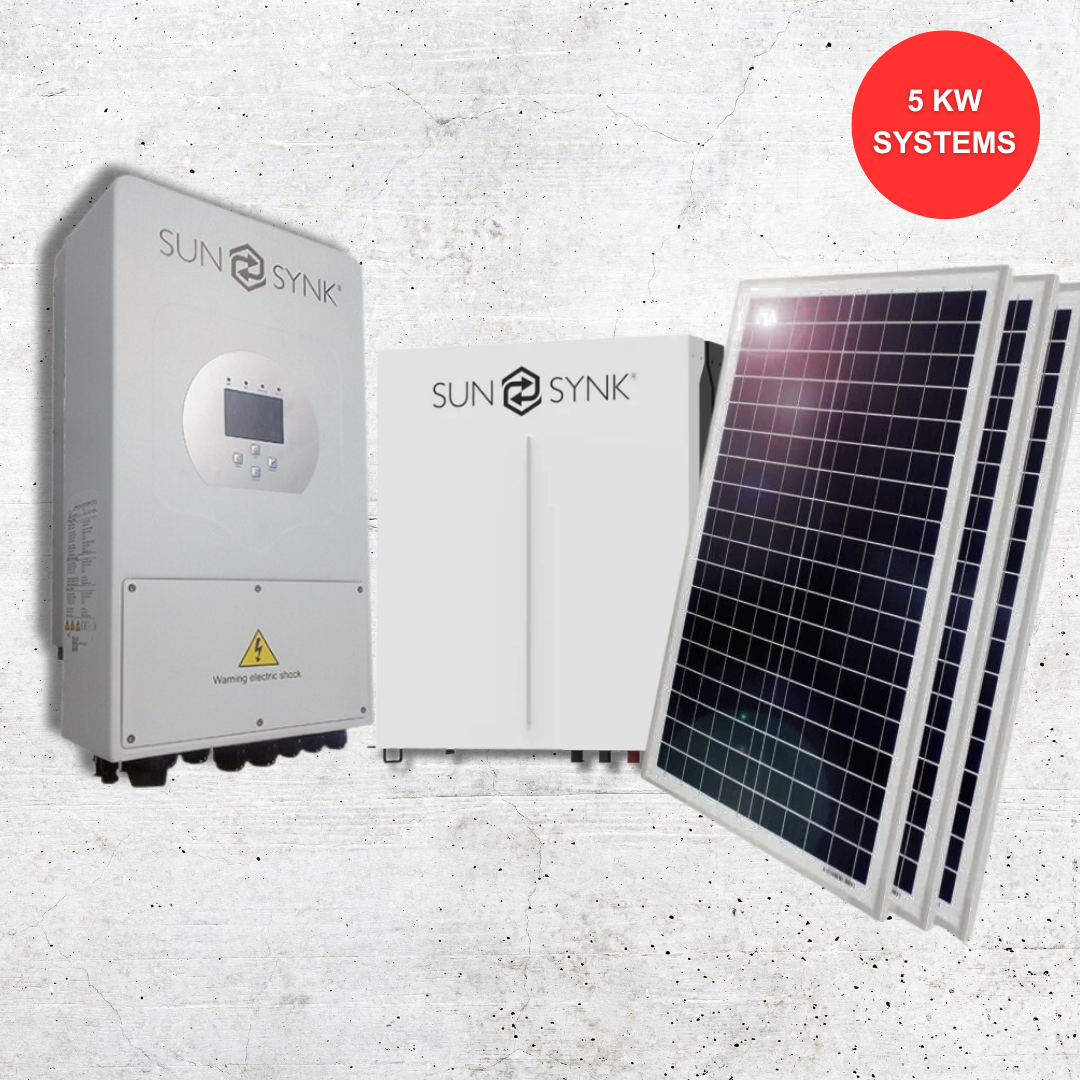

5kw SunSynk Inverter + 5.32kwh SunSynk Lithium Battery + 10x 450w Mono Solar Panels

5kW SunSynk Inverter

INTERACTIVE

– Easy and simple to understand display
– Supporting Wi-Fi or GSM monitoring
– Visual power flow screen
– Smart settable 3-stage MPPT charging for optimized battery performance
– Auxiliary load function
– Parallel / multi invert function grid-tied and off-grid



COMPATIBLE

– Compatible with main electrical grid voltages or power generators
– Compatible with wind turbines
– 220V single phase, pure sine-wave inverter
– Self-consumption and feed-in to the grid
– Auto restart while AC is recovering
– Auto earth bond feature (Via a relay)



SECURE

– Overload/over-temperature/short-circuit protection
– Smart battery charger design for optimized battery protection
– Limiting function installed to prevent excess power overflow to grid



APPLICATIONS

– Marine (vessel power management)
– Power shedding (home/office/factory)
– UPS (fuel-saving systems)
– Remote locations with solar and wind generators
– Building sites
– Military locations
– Telecommunication

Technical Specifications:

• Product Type: Hybrid Inverter
• Enclosure: IP65
• Ambient Temperature: 45ºC ~ 60ºC (>45ºC derating)
• Protection Level: Class I
• Battery Voltage: 48Vd.c (40Vd.c ~ 60Vd.c)
• Battery Current: 90Ad.c (max.)
• AC Input Voltage: L/N/PE 220/230Va.c
• AC Input Frequency: 50/60Hz
• AC Input Rated Current: 16.4Aa.c
• Max. AC Input Power 3960W
• Max. Apparent Output Power: 3960VA
• Max. PV Input Power: 4680W



5.32kW SunSynk Lithium Battery



 Higher yields.

• Improve self-consumption ratio up to 80%, reducing your electricity bill.
• DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
• Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

• LCD Touch screen and buttons, easy operation.
• Compatible with lithium-ion battery and lead acid battery.
• Web browser and mobile App monitoring supported.

Reliable.

• PV lighting protection, Anti-islanding protection, Leakage current protection etc.
• Support store energy from DG when needed, ensure the system working within 7*24H.
• IP65 protection degree, adapt to indoor and outdoor using.
• Automatically switch from on-grid to off-grid mode within 5ms.
• Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

• Programmable charging and discharging schedule.
• Both wind turbines and solar panels can be connected as DC input power.
• Max. 16 units can be paralleled for higher system power.
• Retrofitting of existing solar system to energy storage system.

Battery Input Data

• Battery Type: Lead-acid or Li-lon
• Battery Voltage Range (V): 40-60V
• Max. Charging Current (A): 120A
• Max. Discharging Current (A): 120A
• Charging curve: 3 Stages/Equalization
• External Temperature Sensor: Optional
• Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

• Max. DC Input Power (W): 6500W.
• PV input Voltage (V): 370V (100V-500V).
• MPPT Range (V): 125-425V.
• Start-up Voltage (V): 150V.
• PV Input Current (A): 11A + 11A.
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 1+1.

AC Output Data

• Rated AC Output and UPS Power (W): 5000W
• Max AC Output Power (W): 5500W
• Peak Power(off-grid): 2 times of rated power, 10 S.
• AC Output Rated Current(A): 21.7.4A
• Max.AC Current(A): 25A
• Max Continuous AC Pass-through(A): 35A.
• Output Frequency and Voltage: 50Hz; 240Vac,
• Grid Type: THD<3%(Linear load<1.5%).
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

• Max. Efficiency: 97.60%
• Euro Efficiency: 96.50%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

• Operating Temperature Range ( C ): -25—60 C , >45 C Derating
• Cooling: Fan
• Noise (dB): <30
• Communication with BMS: RS485; CAN
• Weight (kg): 20.5
• Size (mm): 580 X 330 X 208mm
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years

450w HZ Mono Solar Panels

• 144 half-cut large wafer cell monocrystalline percium solar module.
• Improved lifespan and efficiency with mono percium cells.
• Excellent low-light performance.
• Certified resistance to high salt and ammonia exposure.
• 3.2mm low-iron solar glass with anti-reflective coating.
• Certified to withstand high wind loads (3600pa) and mechanical loads (5400pa).
• PID resistance certified by SGS.
• 35mm naturally anodized aluminum frame.
• IP68 rated junction box.
• 1500VDC Maximum String Voltage (IEC/UL).
• 1100mm solar cable and a pair of MC4 connectors.
• TÜV (IEC), SABS certified.
• Super High Efficiency: up to 20.70% module efficiency.
• Typical Output (Watt): 450 + 3%
• Typical Voltage (Vmp): 41.5V
• Typical Amperage (Imp): 10.85A
